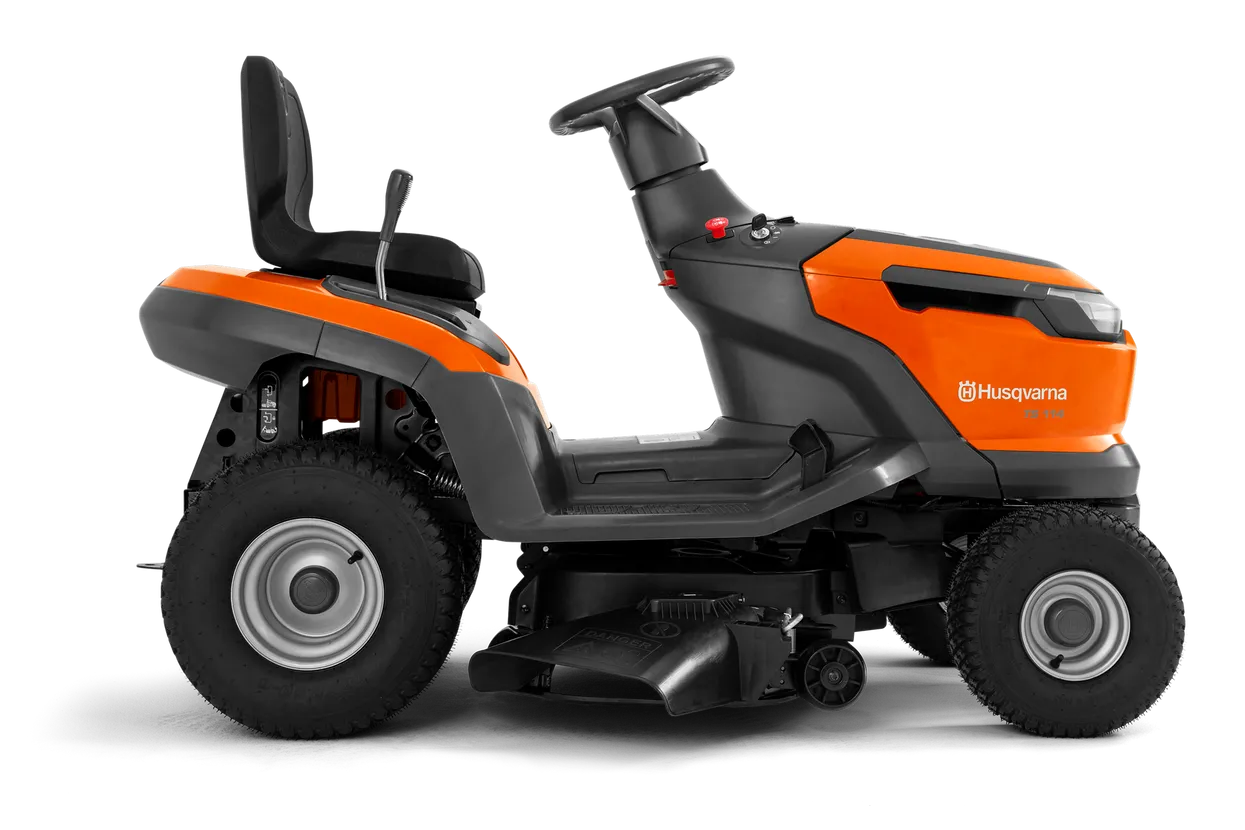

Husqvarna TS 114 Lawn Tractor
About the Husqvarna TS 114 Lawn Tractor
Purposely engineered for ease of use, this reliable garden tractor delivers an exceptional mowing experience on any large lawn – even in narrow passages. Achieve excellent results without straining your body thanks to its ergonomically placed levers, side-by-side pedals and spring-assisted cutting deck. Conveniently compact for optimized storage, maintenance and operation, enjoy trouble-free ownership and a perfectly cut lawn.
Highlights
- Engine Husqvarna Series HS 452AE
- Power 12.2 HP
- Drive Method Dual Pedal-operation
- Cutting width 38" / 95 cm
- Cutting Height, min / max 25 mm / 100 mm
- Cutting Height Steps 6
- Cutting Methods BioClip / Side Discharge
Features
Adjustable driver seat: Tool-less adjustment of seat position.
Dual headlights: Dual headlights at the front.
Hour meter: Helps you having control over service and maintenance intervals.
Side discharge cutting deck: Equipped with a 95cm side discharge cutting deck.
Pedal-operated hydrostatic transmission: Easy speed and direction control with pedal-operated hydrostatic transmission. Separate pedals for forward and reverse.
Compact design: Compact design for effortless navigation in narrow passages and easy storage while not in use.
Anti scalp wheels: The cutting deck is equipped with anti-scalp wheels, which reduce the risk of scalping when cutting uneven lawns.
Ergonomic driving position: Easy-access controls and plenty of leg room thanks to the adjustable seat.The spring assisted height adjustment cutting deck makes it easy to operate.
ROS in start key: Safe and convenient access to the mow in reverse functionality.
Manual blade engagement: Lever to engage the cutting deck.
Fuel level window: Fuel level window makes it easy to check the fuel level.
Dual pedal drive: Dual pedal drive for better drive control and easy, intuitive operation
Control levers on one side: Controls levers on one side make it easier to get in and out of the seat.
Towing hook included: Towing hook Included for multiple rear attachments.
Lever-Mounted cutting height adjustment: Easy accessible cutting height adjustment for improved ergonomics. The spring-assisted cutting deck makes adjustment easier.
Turn key start: Easy to get operating under any weather conditions. No choking needed, just turn the key and go.
Electric engagement of cutting blades: Easy engagement of cutting blades; simply pull the switch on the control panel.
Specifications
| Cutting deck |
TS114
Art no: 970 62 25‑01
|
| Cutting width | 95 cm |
|---|---|
| Cutting height max | 100 mm |
| Cutting height min | 25 mm |
| Nose roller | No |
| Anti-scalp wheels | 2 |
| Emission | |
|
Exhaust emissions (CO2 EU V)
|
754 g/kWh |
| Drive system | |
| Drive method | Dual pedal-operation |
| Speed forward max | 9 km/h |
| Speed reverse max | 5 km/h |
| Engine | |
| Cylinder displacement | 452 cm³ |
| Motor/engine manufacturer | Husqvarna |
| Engine name | HS 452AE |
| Net power at preset rpm Energy | 9 kW |
| Net power at preset rpm | 2,800 rpm |
| Cylinders | 1 |
| Generator | 12 A |
| Power/fuel type | Petrol |
| Oil filter | Yes |
| Equipment | |
| Seat material | PU |
| Front-End Protection | Available as accessory |
| Hour meter type | Digital |
| Seat back height | Medium |
| Steering wheel type | Ergonomic |
| Collector | Available as accessory |
| Transmission | |
| Transmission type | Hydrostatic |
| Transmission manufacturer | Hydro-Gear |
| Sound and Noise | |
| Sound power level, guaranteed (LWA) | 97.6 dB(A) |
| Sound pressure level at operators ear | 83.4 dB(A) |
